a) Kev Tiv Thaiv Kev Puas Tsuaj --High Density Polyethylene cov kav dej phwj muaj qhov tsis tshua muaj siab, muab cov qib siab ntawm kev tiv thaiv kev puas tsuaj rau sab nraud, tshwj xeeb tshaj yog tseem ceeb rau kev ua haujlwm ntawm cov yeeb nkab tawg thiab lwm yam uas yuav muaj kev puas tsuaj.
b) Abrasion Resistance--Black Hdpe pipeline muaj kev puas tsuaj zoo heev muab lub neej ntev hauv kev siv slurry abrasive.
c)Flexibility--"Black Hdpe pipe are flexible and can be bent to a minimum bending radius of 30 times the pipes outside diameter. This flexibility is critical in applications such as submarine pipe lines, mine subsidence and earthquake prone areas. This inherent resiliency and flexibility allows the pipe to absorb surge pressures, vibration and stresses caused by soil movement..Polyethylene underground pipeline can used underline.
d) UV tsis kam--Tshuaj siab heev rau lub hnub ci ncaj qha (UV tiv taus ntev).
Qhov no yog muab los ntawm ultraviolet lub teeb tiv thaiv tus neeg sawv cev sib xyaw rau PE raw khoom, tsis tas yuav tsum tau ua kev tiv thaiv kev tiv thaiv thaum lub sijhawm teeb tsa zoo li kev tiv thaiv cathodic.
e) Chemical resistance--High resistance to chemical, tsis cuam tshuam los ntawm corrosion, decaying thiab abrasion.
f) Smooth internal deg--Qhov zoo ntawm qhov muaj qhov zoo kawg nkaus hauv sab hauv. Qhov no ua rau muaj kev txuag nyiaj ntau nyob rau hauv tag nrho cov nqi ntawm cov kab thiab cov nqi kev pabcuam.
Product details
PEB 100 | 0.4MPa | 0.5MPa | 0.6MPa | 0.8MPa | 1. 0MPa | 1.25MPa | 1.6MPa | 2. 0MPa | 2.5MPa |
Sab nraud txoj kab uas hla | PN4 | PN 5 | PN 6 | PN8 | PIB 10 | PIB 12.5 | NP16 | PIB 20 | PIB 25 |
SDR 41 | SDR 33 | SDR 26 | SDR 21 | SDR 17 | SDR 13.6 | SDR 11 | SDR 9 | SDR 7.4 | |
Phab ntsa Thickness (en) | |||||||||
20 | - | - | - | - | - | - | 2.0 | 2.3 | 3.0 |
25 | - | - | - | - | - | 2.0 | 2.3 | 3.0 | 3.5 |
32 | - | - | - | - | 2.0 | 2.4 | 3.0 | 3.6 | 4.4 |
40 | - | - | - | 2.0 | 2.4 | 3.0 | 3.7 | 4.5 | 5.5 |
50 | - | - | 2.0 | 2.4 | 3.0 | 3.7 | 4.6 | 5.6 | 6.9 |
63 | - | - | 2.5 | 3.0 | 3.8 | 4.7 | 5.8 | 7.1 | 8.6 |
75 | - | - | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 | 8.4 | 10.3 |
90 | - | - | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 | 12.3 |
110 | - | - | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 | 12.3 | 15.1 |
125 | - | - | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 | 14.0 | 17.1 |
140 | - | - | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | 15.7 | 19.2 |
160 | - | - | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | 17.9 | 21.9 |
180 | - | - | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | 20.1 | 24.6 |
200 | - | - | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | 22.4 | 27.4 |
225 | - | - | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | 25.2 | 30.8 |
250 | - | - | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 | 27.9 | 34.2 |
280 | - | - | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | 31.3 | 38.3 |
315 | 7.7 | 9.7 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 | 35.2 | 43.1 |
355 | 8.7 | 10.9 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 | 39.7 | 48.5 |
400 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | 44.7 | 54.7 |
450 | 11.0 | 13.8 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | 50.3 | 61.5 |
500 | 12.3 | 15.3 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 | 55.8 | - |
560 | 13.7 | 17.2 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 | 62.5 | - |
630 | 15.4 | 19.3 | 24.1 | 30.0 | 37.4 | 46.3 | 57.2 | 70.3 | - |
710 | 17.4 | 21.8 | 27.2 | 33.9 | 42.1 | 52.2 | 64.5 | 79.3 | - |
800 | 19.6 | 24.5 | 30.6 | 38.1 | 47.4 | 58.8 | 72.6 | 89.3 | - |
900 | 22.0 | 27.6 | 34.4 | 42.9 | 53.3 | 66.2 | 81.7 | - | - |
1000 | 24.5 | 30.6 | 38.2 | 47.7 | 59.3 | 72.5 | 90.2 | - | - |
1200 | 29.4 | 36.7 | 45.9 | 57.2 | 67.9 | 88.2 | - | - | - |
1400 | 34.3 | 42.9 | 53.5 | 66.7 | 82.4 | 102.9 | - | - | - |
1600 | 39.2 | 49.0 | 61.2 | 76.2 | 94.1 | 117.6 | - | - | - |
COMPANY PROFILE:
Shandong Kangyu Yeeb Nkab Kev Lag Luam Co., Ltd., nrhiav tau nyob rau hauv 2000, yog ib lub tuam txhab tshwj xeeb hauv kev tsim khoom ntawm PP-R, PE, PE-RT, PB yas kav thiab fittings. Nyob rau hauv Linyi, xeev Shandong, Suav teb, peb mob siab rau peb tus kheej tsis tu ncua rau kev lag luam thoob ntiaj teb thiab muab cov kav xa dej xa tuaj uas tuaj ntawm thoob plaws lub ntiaj teb nrog kev pabcuam. Txhawm rau tsim kom muaj lub Hoobkas niaj hnub, peb nqis peev hauv cov khoom siv tshuab ua haujlwm zoo. Peb lub tuam txhab ntiav cov kws tshaj lij thiab cov txuj ci kev paub dhau los thiab tsom rau tib neeg cov peev txheej ntawm kev ua tiav ntawm kev tswj hwm, kev ua haujlwm thiab kev pabcuam. Peb muab peb cov neeg koom tes nrog kev tshaj lij thiab muaj txiaj ntsig ib qho - nres kev pabcuam.
Tuam txhab duab:
KHOOM HAUJ LWM:

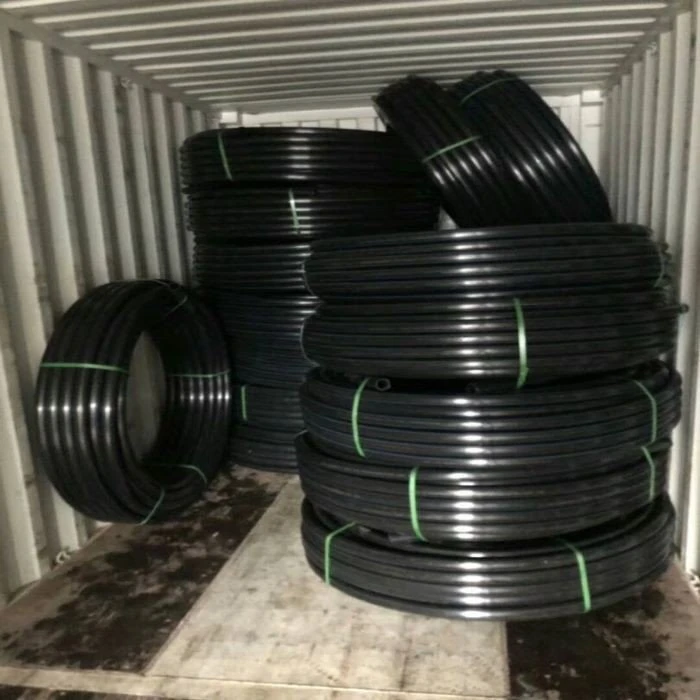

Thawv thauj khoom
